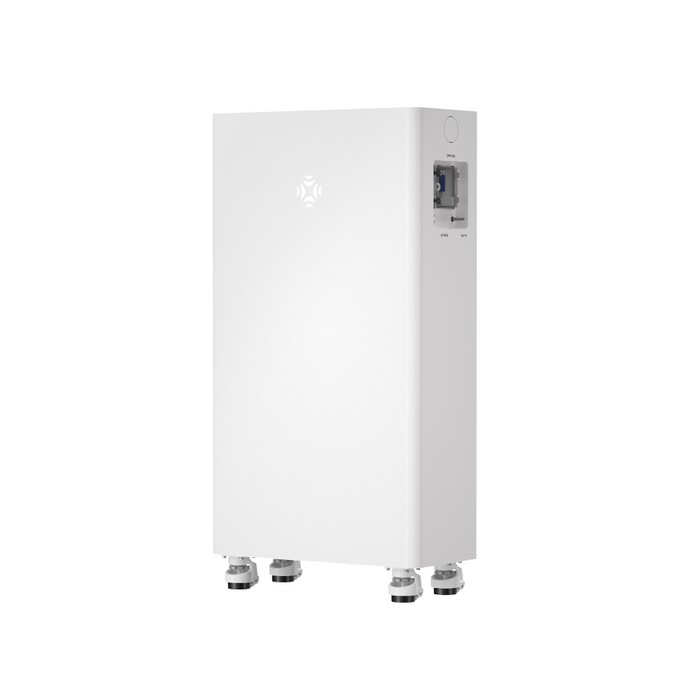

UZ Rechargeable Home Storage Battery | 51.2V 314Ah 16,000 Watts IG-16K-U
UZ Rechargeable Lithium-ion Battery Pack IG-16K-U
Product Description
The IG-16K-U from UZ Energy’s Power Lite Plus Series is a premium 16 kWh LiFePO₄ battery system designed for residential, commercial, and industrial energy storage. Built with Tier-One LFP cells, advanced BMS intelligence, and multiple integrated safety layers—including fire extinguishing, heating films, decompression valves, and aerogel insulated pads—this battery is engineered for maximum reliability and long cycle life.
Whether you need blackout backup, solar storage, or scalable energy solutions up to 1,028.9 kWh in parallel, the IG-16K-U delivers safe, efficient, and durable performance.
Key Features
-
High capacity: 16 kWh rated energy, 314 Ah capacity
-
Powerful output: up to 7.6 kW continuous / 10 kW charge-discharge
-
AI-powered safety: integrated fire extinguisher, heating films, aerogel insulation, decompression valves, and real-time BMS detection
-
Scalable design: parallel up to 64 units for over 1 MWh of storage
-
Cold-weather capability: supports charging down to -10 °C (14 °F)
-
Outdoor-ready: IP65-rated enclosure for dust and water protection
-
Smart integration: CAN, RS485, and Wi-Fi communication interfaces
-
Long cycle life: >8,000 cycles for extended system value
-
Flexible installation: floor-standing or wall-mounted options
-
Certified and tested: UL 1973, UL 9540A, UN 38.3, FCC
Specifications
| Parameter | Details |
|---|---|
| Model | IG-16K-U |
| Chemistry | LiFePO₄ (LFP) |
| Rated Capacity | 314 Ah |
| Rated Voltage | 51.2 V |
| Rated Energy | 16 kWh |
| Working Voltage Range | 43.2 V – 58.4 V |
| Maximum Parallel Quantity | 64 sets (up to 1,028.9 kWh) |
| Maximum Charge Current | 150 A (0.48C) |
| Maximum Continuous Discharge | 200 A (0.64C) |
| Maximum Charge/Discharge Power | 7.6 kW / 10 kW |
| Peak Discharge Current/Power | 210 A / 10.7 kW (1 min) |
| Available SOC Range | 0% – 100% |
| Cycle Life | >8,000 cycles (0.5C @ 25 °C, 90% DoD) |
| Dimensions (W × D × H) | 500 × 235 × 960 mm (±5) / 19.69 × 9.25 × 37.80 in |
| Weight | ~140 kg / ~308.7 lbs |
| Operating Temperature | Charge: -10 °C – 55 °C (14 °F – 131 °F) Discharge: -15 °C – 55 °C (5 °F – 131 °F) |
| Storage Temperature | -15 °C – 55 °C (5 °F – 131 °F) |
| Recommended Storage Temp. | 10 °C – 30 °C (50 °F – 86 °F) |
| Humidity | 5% – 95% RH, non-condensing |
| Altitude | ≤3,000 m (9,843 ft) |
| Communication | CAN / RS485 / Wi-Fi |
| Integrated Safety | Fire extinguisher, heating film, decompression valve, aerogel insulated pads, fuse, DC breaker |
| Installation Methods | Floor-standing / Wall-mounted |
| Ingress Protection | IP65 |
| Warranty | 10 years |
| Certifications | UL 1973, UL 9540A, UN 38.3, FCC |
Applications
-
Residential solar plus storage
-
Commercial and industrial energy storage systems
-
Blackout and emergency backup power
-
Microgrid and off-grid applications
-
Energy management for large facilities
