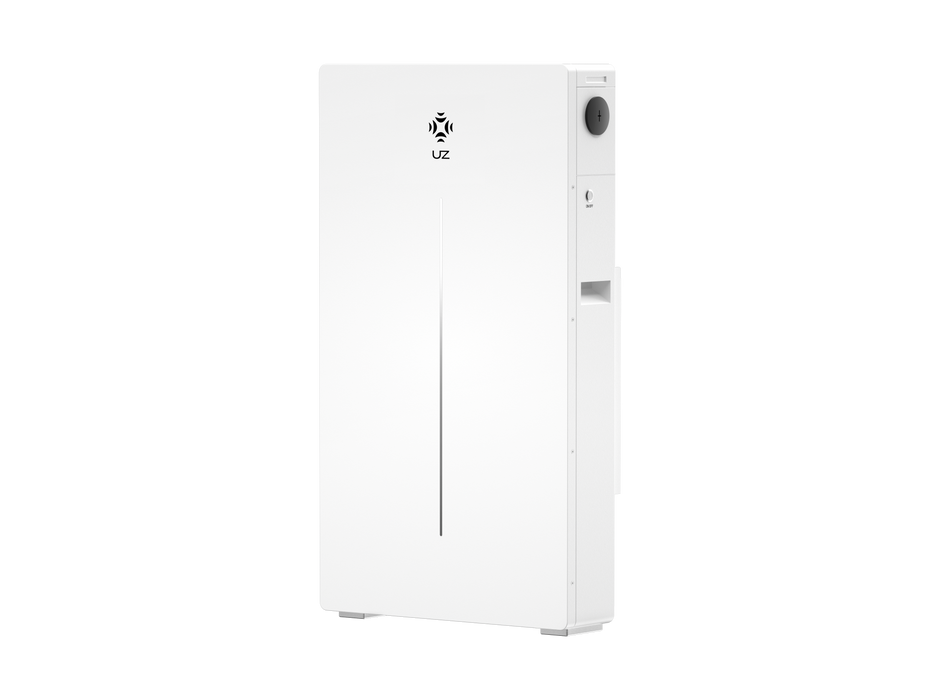

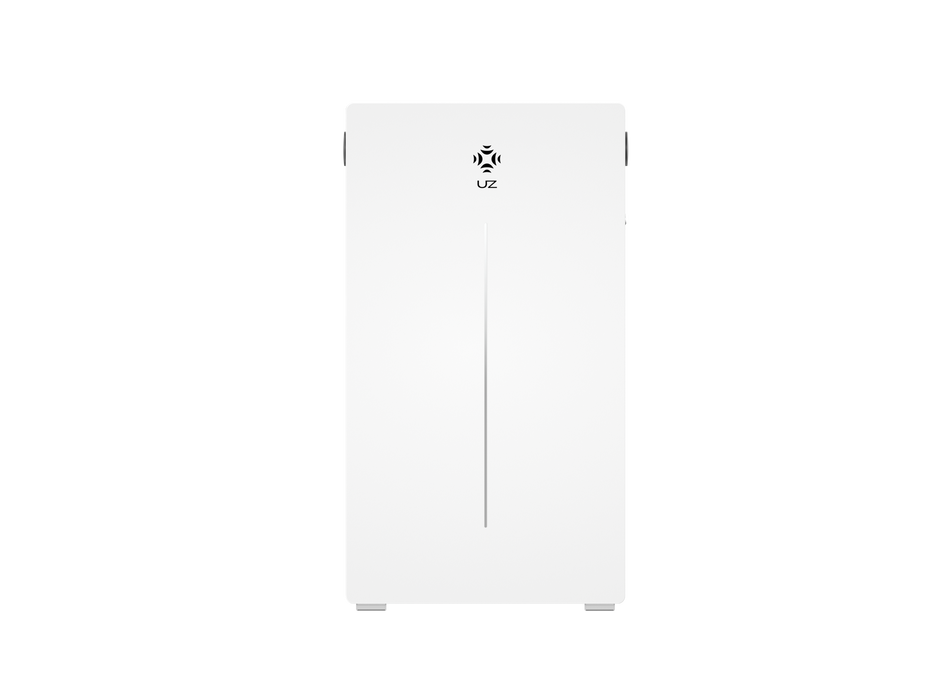

Power Lite Plus Series – PLP4.1-HX02U | 5.12kWh LiFePO₄ Home Battery
Power Lite Plus Series – PLP4.1-HX02U | 5.12kWh LiFePO₄ Home Battery
A reliable 5.12kWh LiFePO₄ residential battery system with smart BMS, IP65 protection, and scalable capacity up to 81.92kWh. Perfect for solar storage, backup power, and off-grid applications.
Key Features
-
5.12kWh LiFePO₄ Battery – Safe, stable, long lifespan (6000+ cycles)
-
High Power Output – 2.56kW rated / 100A peak (10s)
-
Expandable – Parallel up to 16 units (81.92kWh total)
-
Cold Weather Ready – Supports charging down to -5 °C
-
Durable Design – IP65 rated, indoor/outdoor installation
-
Advanced BMS – Real-time monitoring, protection, and balance
-
Emergency Backup – Keeps critical devices powered during outages
-
Certifications – UL1973 / UL9540A / FCC / UN38.3
Specifications
| Category | Details |
|---|---|
| Cell Type | LiFePO₄ |
| Rated Capacity | 100 Ah |
| Rated Energy | 5.12 kWh |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 45–56.5 V |
| Rated Output Power | 2.56 kW |
| Max Continuous Current | 50 A |
| Peak Current (10s) | 100 A |
| Cycle Life | ≥ 6000 cycles (25 °C, 90% DOD) |
| Communication | CAN / RS485 / WiFi |
| IP Rating | IP65 |
| Warranty | 10 Years |
| Dimensions | 640 × 181 × 1017 mm |
| Weight | 30 kg |
Applications
-
Residential Solar Storage – Store excess solar for night use
-
Emergency Backup Power – Reliable energy during outages
-
Off-Grid Living – Power remote homes, cabins, or tiny houses
-
Microgrid Systems – Smart integration with inverters and EMS
Scalability
-
1 Unit = 5.12 kWh
-
2 Units (stacked) = 10.24 kWh
-
16 Units = 81.92 kWh
Why Choose the Power Lite Plus Series?
✅ Peace of mind during blackouts
✅ Lower energy bills with solar storage

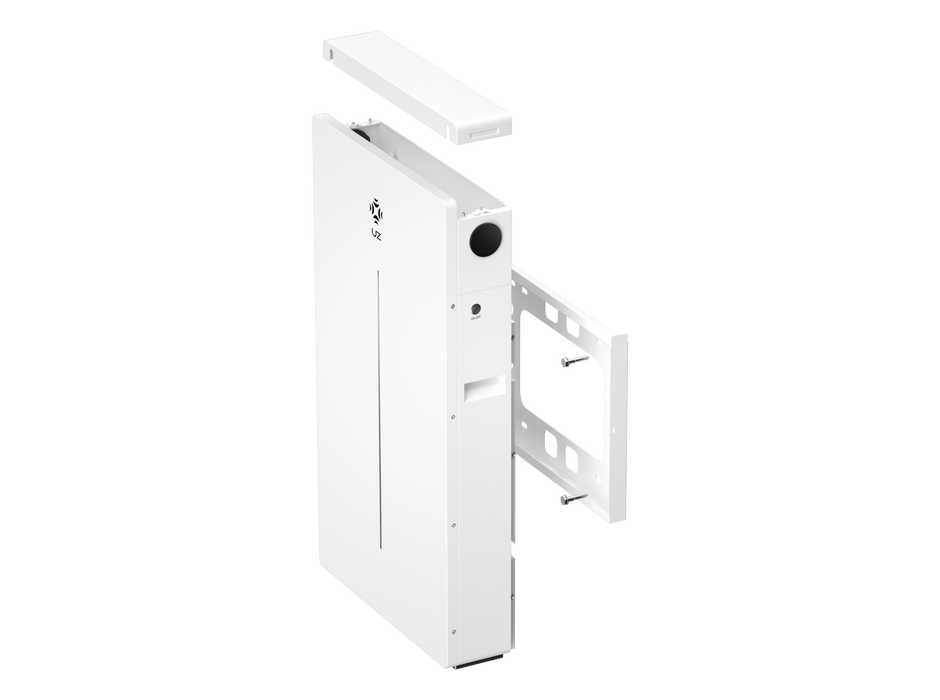

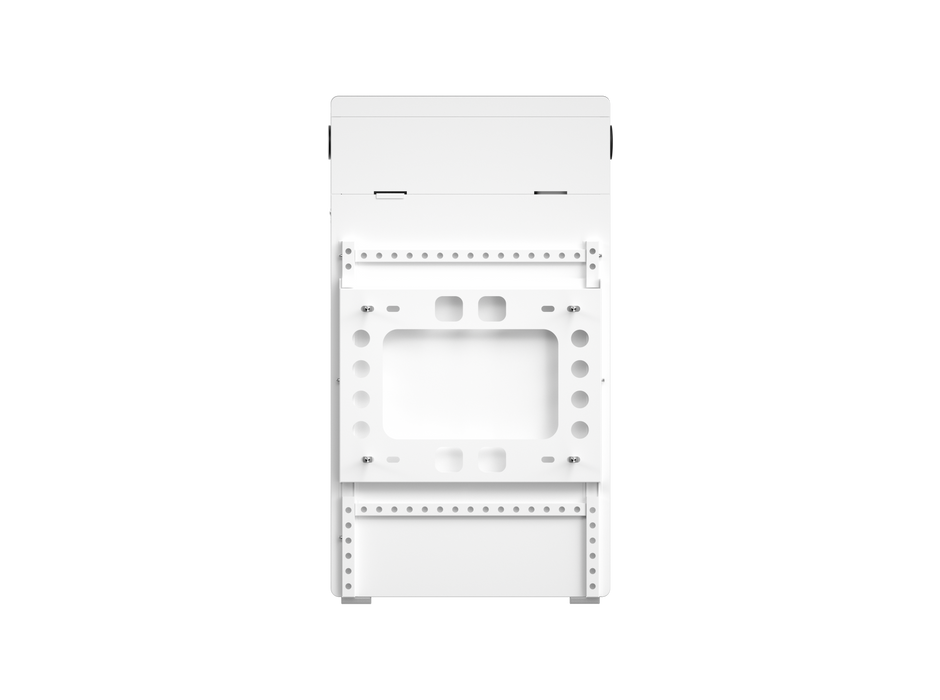

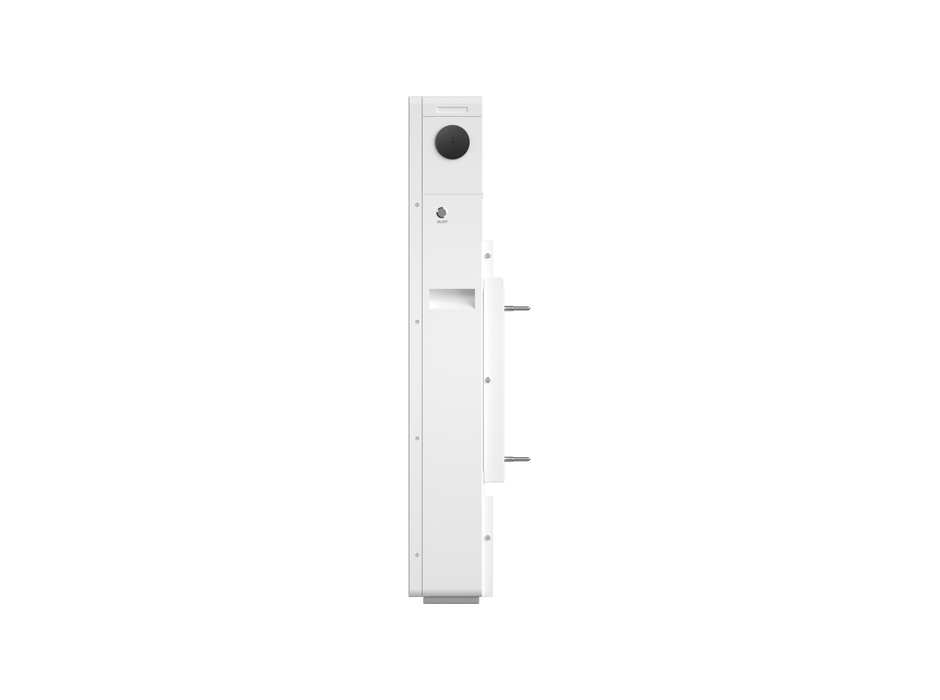

✅ Flexible installation (wall or floor mount)
✅ Backed by industry-leading safety certifications
Package Includes
-
1 × Power Lite Plus Series PLP4.1-HX02U Battery
-
Mounting accessories
-
User manual & installation guide
Downloads
Power Lite Plus Quick Installation Guide
Power Lite Plus (PLPA-L1-10K2-U) Product Specification
