Growatt SPH 10000TL‑HU‑US (B) (With CT’s) (W/L) (TRS‑T)
Product Description

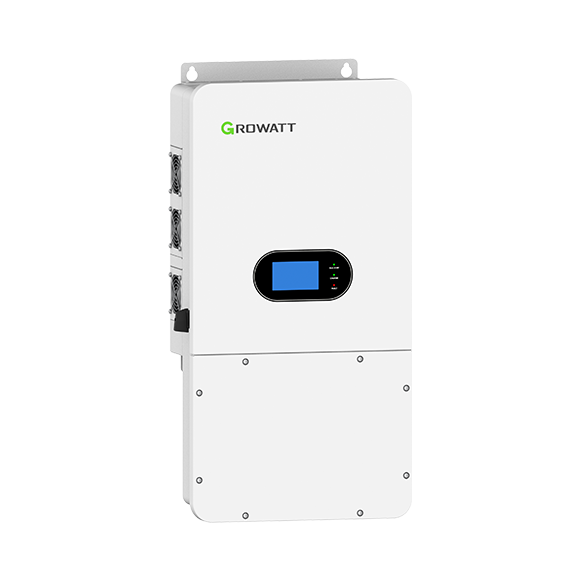

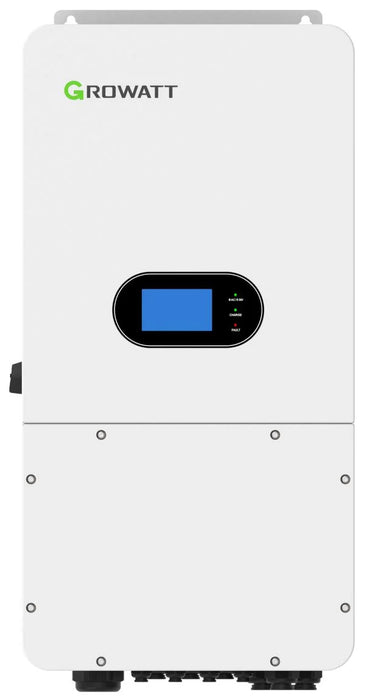

The Growatt SPH 10000TL‑HU‑US (B) is a 10 kW split-phase hybrid inverter designed for U.S. residential and light commercial systems. It seamlessly integrates solar PV, 48 V battery storage, utility grid, and generator backup. Featuring built-in CT (current transformer) capabilities and transfer switch (TRS‑T), it delivers a dependable whole-home backup solution with fast UPS function (~10 ms transition), scalable parallel support (up to six units), and Gen-set compatibility. It also includes Wi-Fi/4G/Bluetooth monitoring and is IP65-rated for outdoor or indoor installation.
Accessories & Features
CT’s (Current Transformers): Included for advanced load monitoring and energy management via CT ports self2solar+14Growatt USA+14Growatt USA+14.
Transfer Switch (TRS‑T): Automatic transition between grid and backup power.
Wiring / Load (W/L): Designed with integrated terminals and wiring layout for easy installation with standard US residential panels.
B-Version Enhancements: Includes firmware/configuration for CT input and transfer-switch capabilities as per growatt documentation.
Technical Specification Sheet – Growatt SPH 10000TL-HU-US (B)
Category | Specification |
---|---|
Model | SPH 10000TL-HU-US (B) |
System Type | Hybrid Inverter (Grid + Battery + Generator) |
Nominal AC Power Output | 10,000 W (120/240V split-phase) |
Max PV Input Power | 15,000 W |
MPPT / Strings | 3 MPPTs / 2 strings per MPPT |
Max PV Input Voltage | 600V |
Max Input Current per MPPT | 22A |
Battery Voltage Range | 40 – 60V (nominal 48V) |
Max Battery Charge/Discharge | 200A |
UPS Transfer Time | ≤10 ms |
DC/AC Ratio | Up to 1.5 |
Parallel Support | Up to 6 units (60kW max system) |
Generator Compatibility | Yes (TRS-T built-in transfer switch) |
Current Transformers (CTs) | Included |
Monitoring | WiFi / 4G / Bluetooth |
Certifications | UL1741 SA, UL9540, FCC Part 15, CEC Listed |
Surge Protection | Type II (AC & DC sides) |
Cooling | Natural convection |
Noise Level | ≤40 dB |
Protection Rating | IP65 / NEMA 4X |
Operating Temperature | -13°F to 122°F (-25°C to 50°C) |
Dimensions (H × W × D) | 630 × 430 × 200 mm (24.8 × 16.9 × 7.9 in) |
Weight | 35 kg (77 lbs) |
Warranty | 10 years |
Growatt SPH 10000TL-HU-US Document List
Product Datasheet (US model) |
SPH_10000TL‑HU‑US_Datasheet_EN_202406.pdf (published Jun 2024 |
