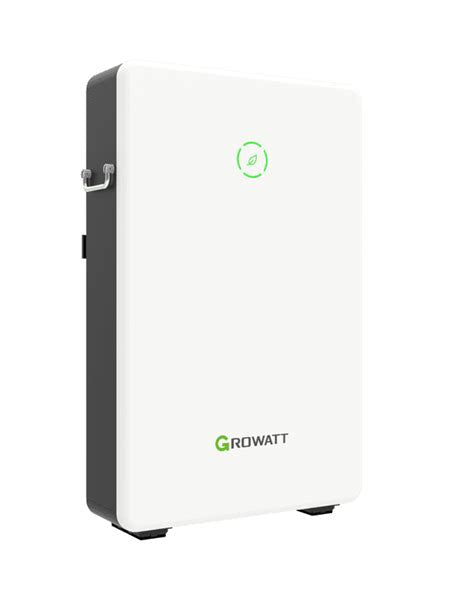

Growatt ALP 5.0L‑E2‑US (5 kWh Battery Module)

Product Description

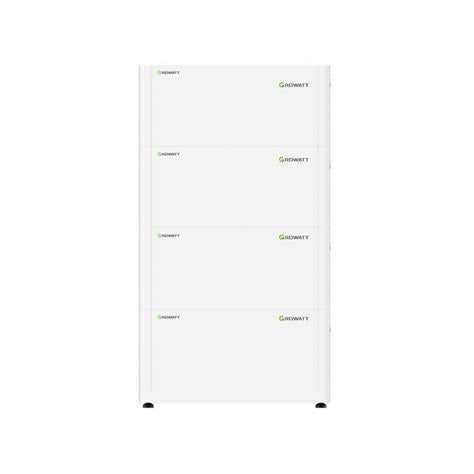

The Growatt ALP 5.0L‑E2‑US is a 51.2 V, 5 kWh stackable LiFePO₄ battery module designed for residential and light commercial energy storage. It features a modular, plug‑and‑play design allowing easy scalability up to 160 kWh per control box (max. 8 modules) and up to 320 kWh in total configurations. Utilizing cobalt-free LiFePO₄ cells, it delivers high cycle life (> 6000 cycles at 92 % DoD) and integrated soft-start protection. Rated for both indoor and outdoor installation (IP65/IP66), the unit supports wall or floor mounting and communicates via CAN interface

Specification Sheet

Specification Details
Model ALP 5.0L‑E2‑US
Battery Chemistry Cobalt-free LiFePO₄
Nominal Capacity 5.0 kWh
Nominal Voltage 51.2 V
Operating Voltage Range 46.4 – 57.6 V
Nominal Charge/Discharge Current 75 A (up to 220 A peak)
Depth of Discharge (DoD) 92 %
Cycle Life
6000 cycles at rated DoD
Scalability Up to 8 modules (~40 kWh per cluster); ≤160 kWh system; ≤320 kWh total
Max Continuous Current 220 A
Ingress Protection IP66 / NEMA 4X
Dimensions (W × D × H) 710 × 185 × 295 mm (28.0 × 7.3 × 23.2 in)
Weight ~46 kg (101.5 lb)
Installation Wall-mounted or floor installation
Communication CAN
Operating Temperature –10 °C to 50 °C
Certificates UL1973, UL9540A, FCC, UN38.3, CE, RoHS
Warranty 10 years

Growatt ALP 5.0L‑E2‑US Document List

Document Type File Name
Product Datasheet ALP_LV-US_Battery_Datasheet_EN_202412.pdf
UL9540A Certification ALP_LV_US_Battery_UL9540A.pdf
UL1973 Certification ALP_LV_US_Battery_UL1973.pdf
FCC Compliance Certificate ALP_LV_US_Battery_FCC.pdf
ATS-US Quick Installation Guide ATS-US_Quick_Guide_EN_202305.pdf
Original price $2,499.00 - Original price $2,499.00
Original price
$2,499.00
$2,499.00 - $2,499.00
Current price $2,499.00
