FlexiBlock 12V100Ah Pro

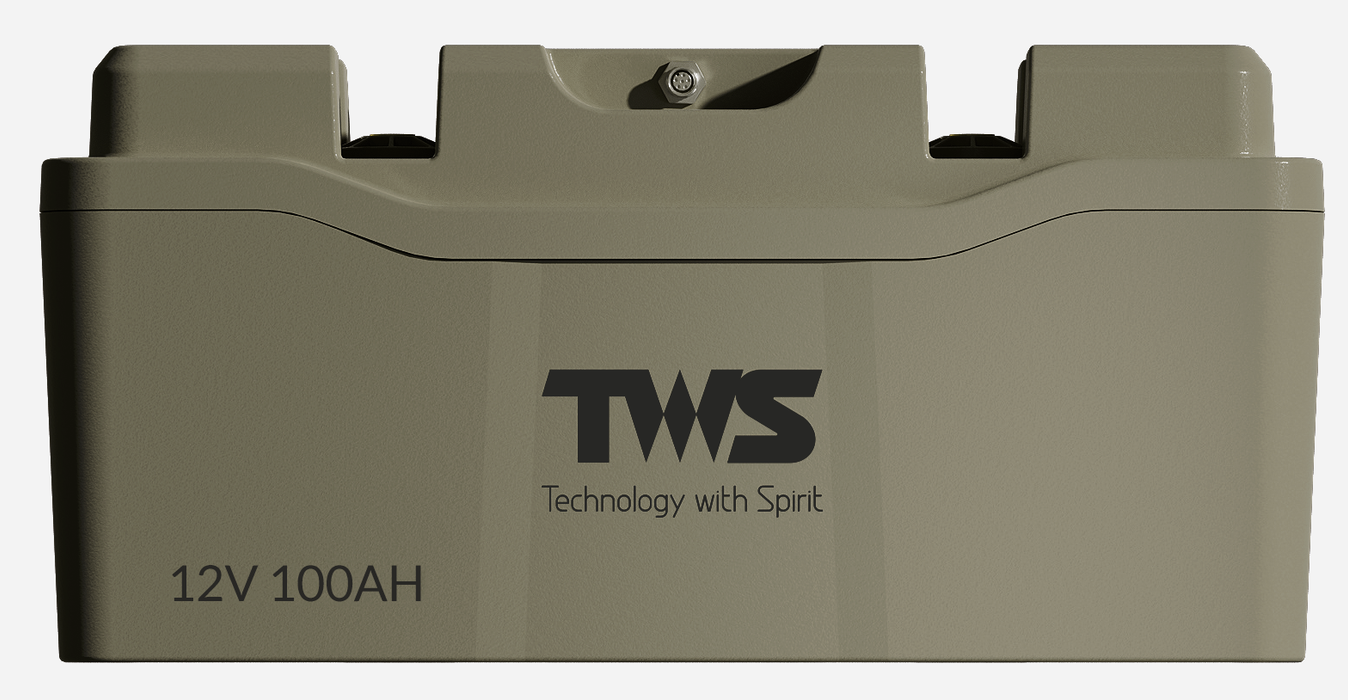

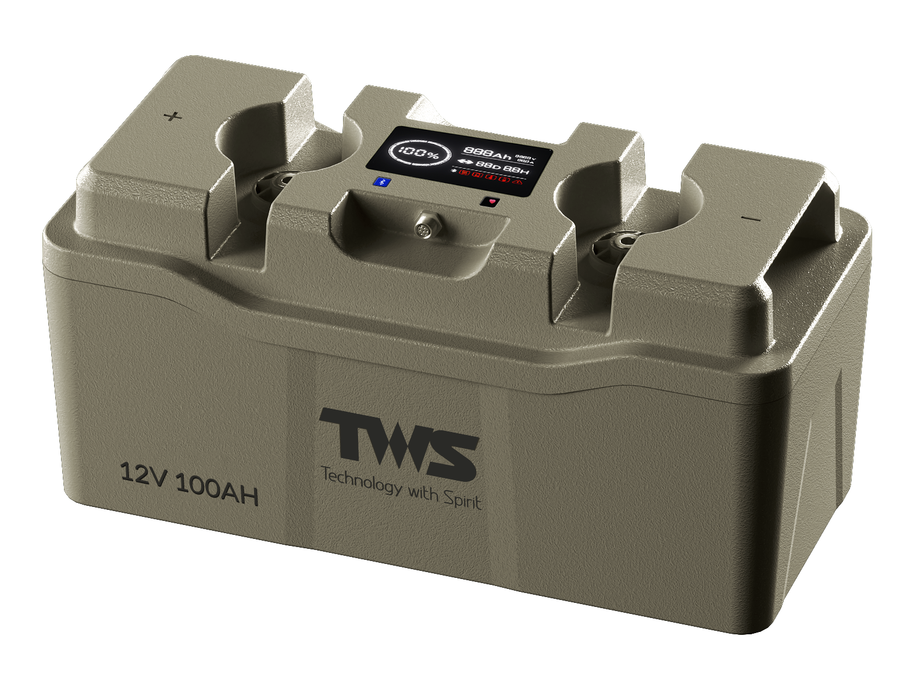

FlexiBlock 12V 100Ah Pro LiFePO₄ Battery (Bluetooth Enabled)
Upgrade your power system with the FlexiBlock 12V 100Ah Pro, a high-performance lithium iron phosphate (LiFePO₄) battery engineered for demanding applications. Designed for reliability, longevity, and intelligent monitoring, this advanced battery is ideal for solar storage, RVs, marine, backup power, and off-grid setups.
With Bluetooth connectivity, an optional self-heating function, and support for multiple battery connections, the FlexiBlock 100Ah Pro offers unmatched versatility in a rugged IP67-rated case.
KEY FEATURES
-
12.8V 100Ah / 1.2kWh Capacity
-
LiFePO₄ Chemistry – Safe, stable, and long-lasting
-
Bluetooth Monitoring App – Real-time battery status on your phone
-
Optional Self-Heating – Performs even in freezing environments
-
Compact & Lightweight – Just 12.9kg (28.4 lbs)
-
IP67 Waterproof Enclosure – Built for outdoor & mobile environments
-
High Discharge Rate – 100A continuous / 250A peak (<10s)
-
Up to 6,000 Cycles @ 80% DoD
-

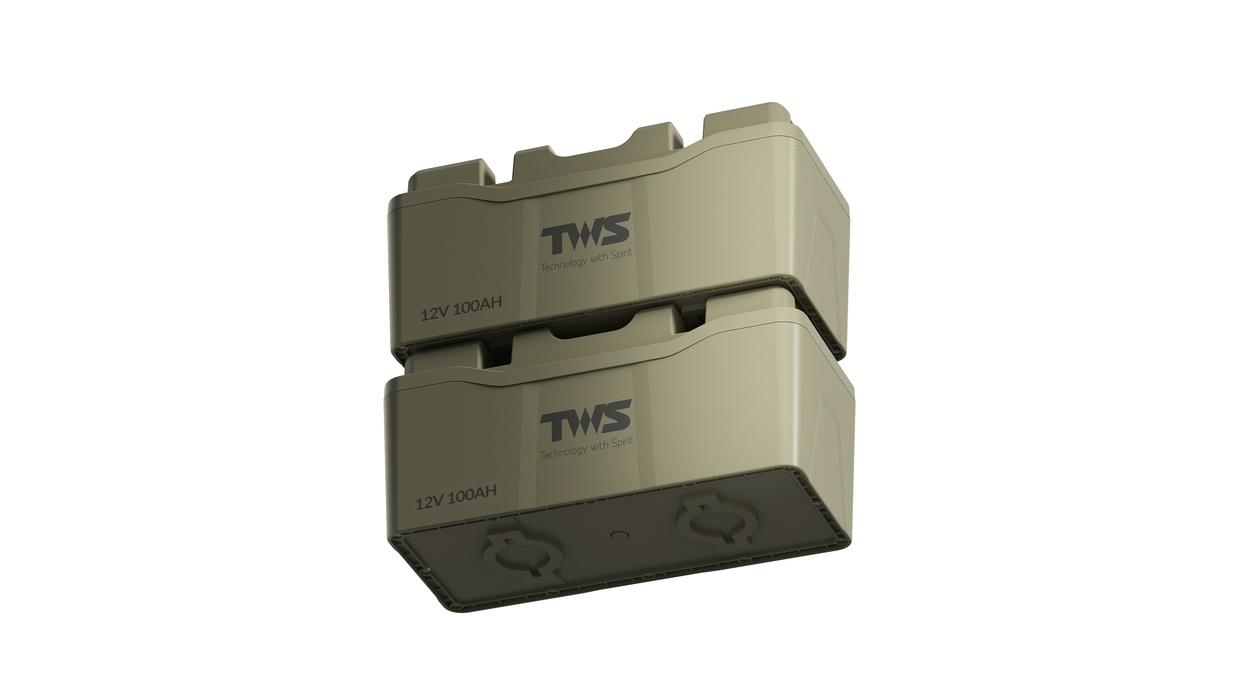

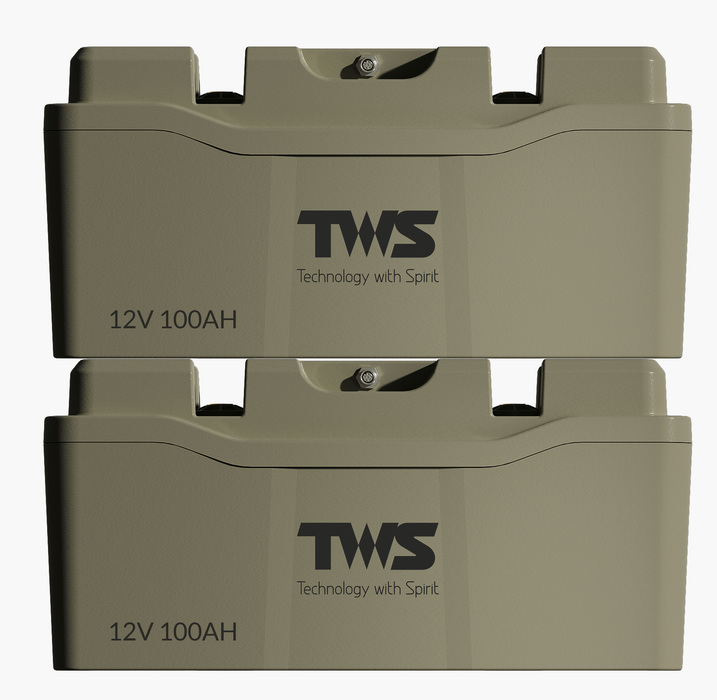

Series (3S) & Parallel (8P) Configurable
-
CAN & RS485 Communication – Ready for advanced energy systems
-
Certified Safe – CE, RoHS, UN38.3, UL94V-0 compliant case
APPLICATIONS
-
Off-Grid Solar Systems
-
RVs & Campers
-
Marine & Boats
-
Home Backup Power
-
Telecom & Industrial
-
Construction, Mobile Workstations
-
Cold Climate Energy Storage

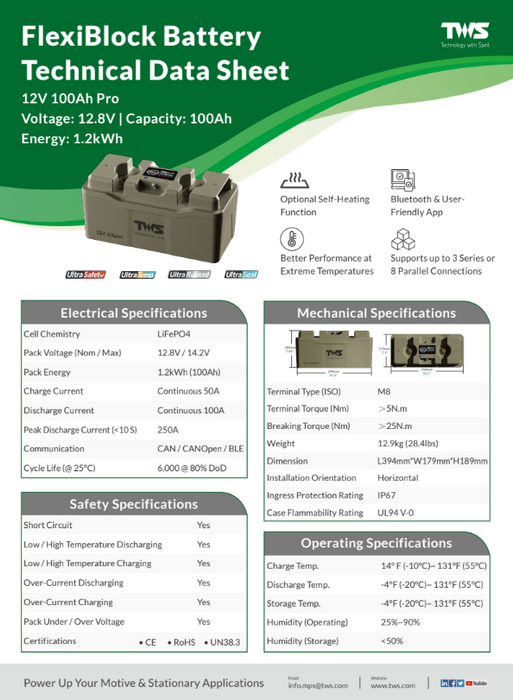

TECHNICAL SPECIFICATIONS
Electrical:
| Specification | Value |
|---|---|
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Energy | 1.2kWh |
| Charge Current | 50A (continuous) |
| Discharge Current | 100A (continuous) |
| Peak Discharge (<10s) | 250A |
| Cycle Life | 6,000+ cycles (@ 80% DoD, 25°C) |
| Chemistry | LiFePO₄ |
| Communications | CAN / CANOpen / BLE |
Mechanical:
| Specification | Value |
|---|---|
| Dimensions | 394mm x 179mm x 189mm |
| Weight | 12.9kg (28.4 lbs) |
| Terminal | M8 |
| Orientation | Horizontal |
| Ingress Rating | IP67 |
| Flame Rating | UL94 V-0 |
Temperature Ranges:
| Mode | Range |
|---|---|
| Charging | 14°F to 131°F (-10°C to 55°C) |
| Discharging | -4°F to 131°F (-20°C to 55°C) |
| Storage | -4°F to 131°F (-20°C to 55°C) |
BUILT FOR SAFETY
-
Over/Under Voltage Protection
-
Over-Current & Short Circuit Protection
-
High & Low Temp Protection (Charge/Discharge)
-
Cell Balancing
-
Smart BMS with App Integration

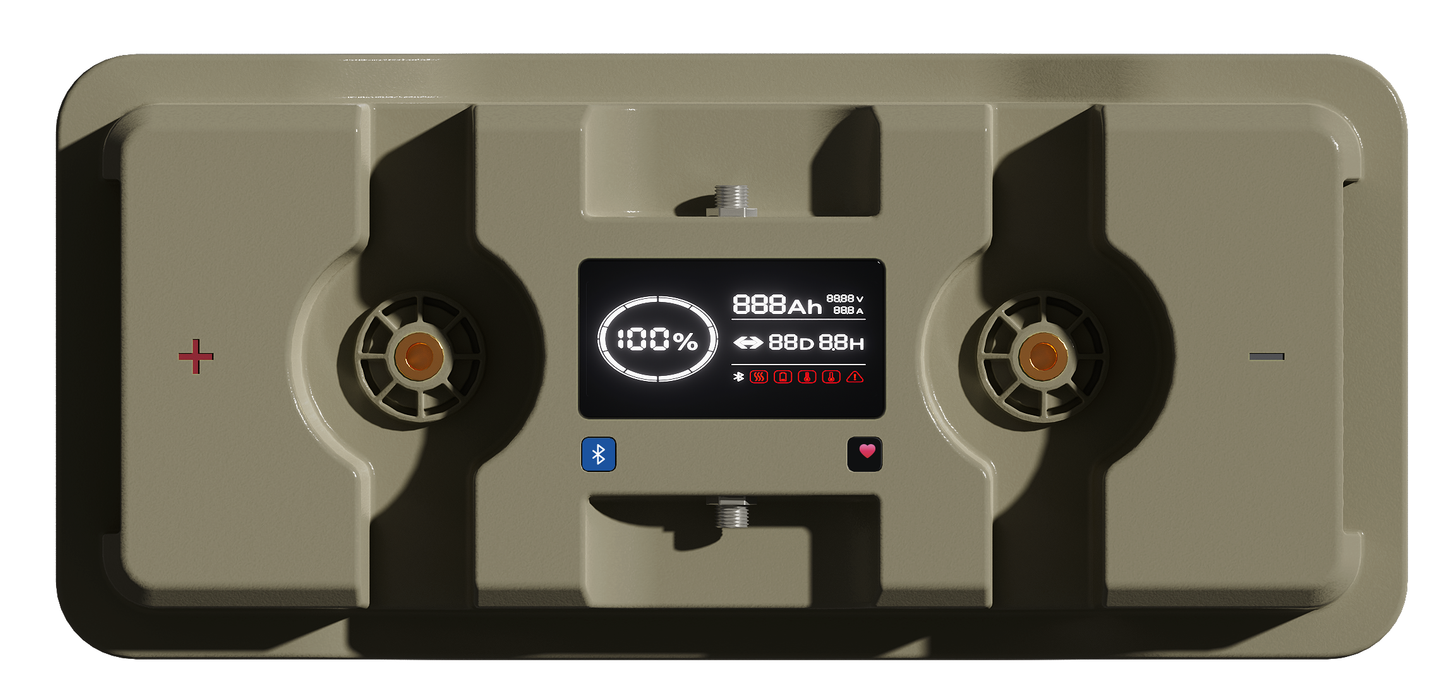

TAKE CONTROL WITH BLUETOOTH
Easily monitor your battery’s performance with a Bluetooth-enabled mobile app:
-
Real-time Voltage, SOC, Temperature & Cycle Count
-
Error Notifications
-
Ideal for mobile, solar, and stationary setups
BUILT TO LAST
With up to 6,000 cycles at 80% depth of discharge, the FlexiBlock 12V 100Ah Pro delivers 10+ years of dependable performance—far outperforming traditional lead-acid batteries in both lifespan and efficiency.
Perfect for off-grid power, mobile energy setups, or as a drop-in replacement for aging AGM/lead-acid batteries.
