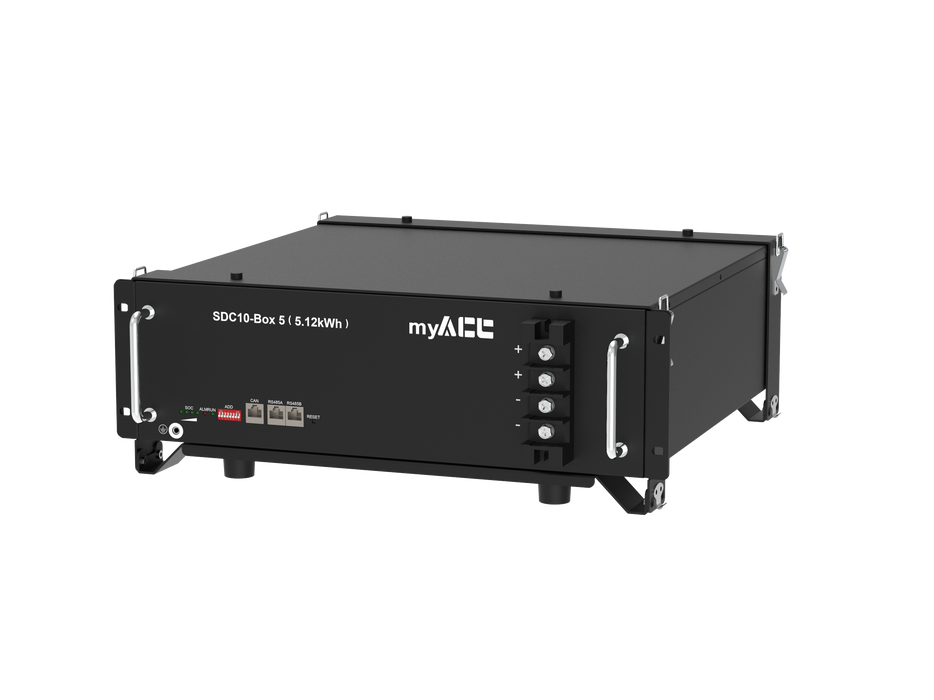

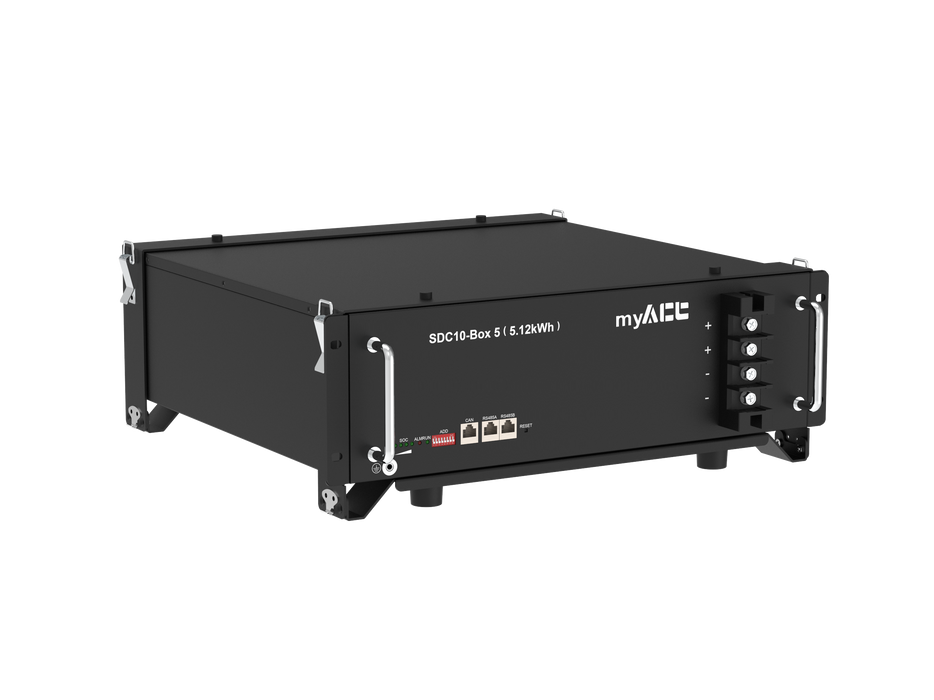

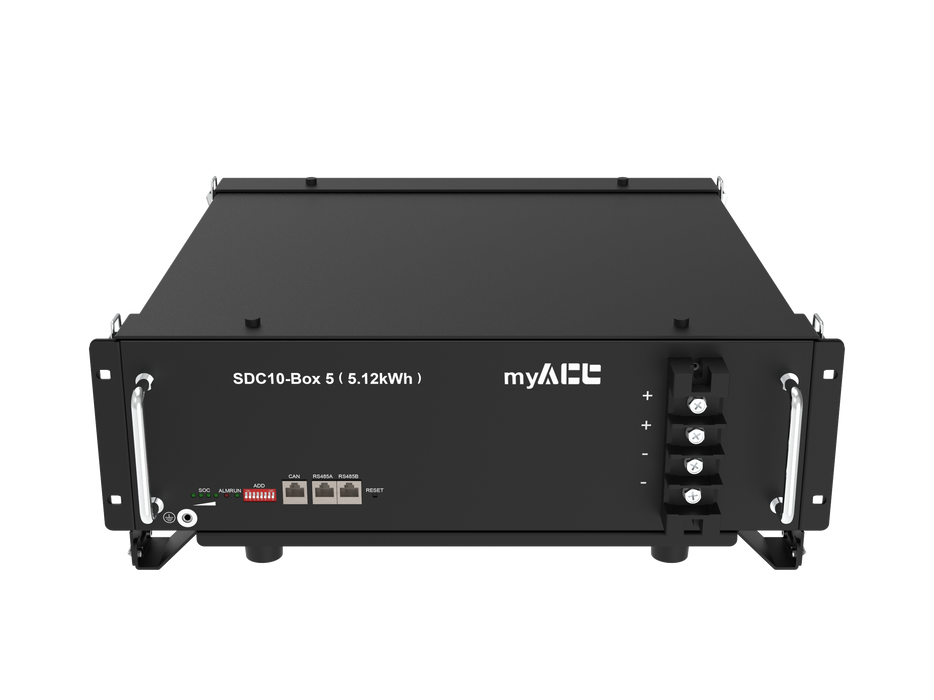

51.2V 100Ah 5.12kWh LiFePO4 Server Rack Battery – SDC10-Box5 / ABM10-Box5

Description:

Reliable Energy Storage for Home, Business, and Off-Grid Applications.

The SDC10-Box5 / ABM10-Box5 is a high-performance 51.2V 100Ah LiFePO4 server rack battery designed for safety, long cycle life, and seamless integration with a wide range of inverters. With a usable capacity of 5.12kWh per unit and the ability to connect up to 20 units in parallel, this battery is perfect for expanding your energy storage system to meet your needs.

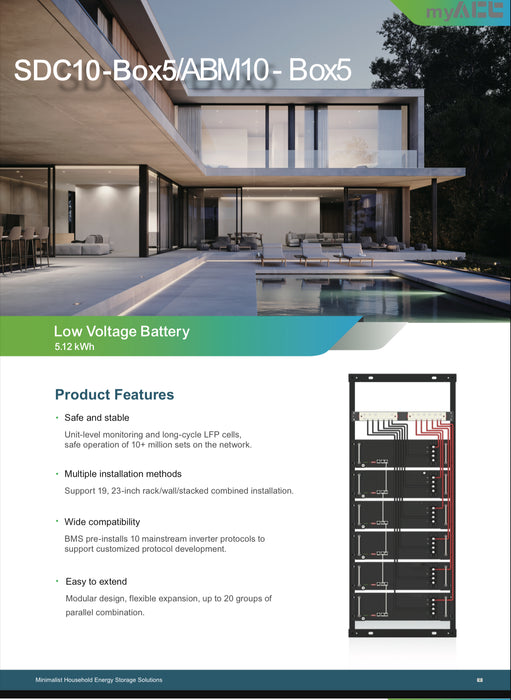

Key Features:

• Long-lasting LFP chemistry – Over 6,000 cycles at 80% depth of discharge
• Wide inverter compatibility – CAN & RS485 communication, supports brands like Deye, Growatt, Victron, Goodwe, SMA, Solis, and more
• Expandable design – Connect up to 20 units in parallel for systems up to 100kWh

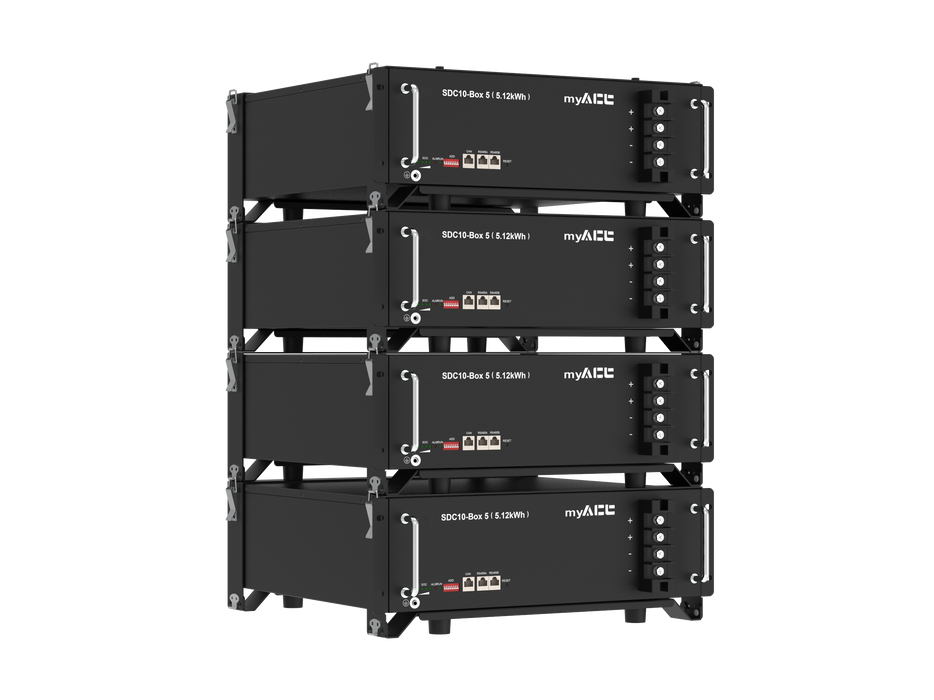

• Rack, wall, or stacked installation – 19” standard rack size
• Built-in BMS protection – Overvoltage, undervoltage, overcurrent, short circuit, and temperature protection
• Quiet operation – Self-cooling design with no noisy fans

Specifications:

• Model: SDC10-Box5 / ABM10-Box5
• Nominal Voltage: 51.2V
• Capacity: 100Ah / 5.12kWh
• Usable Capacity: ~4.6kWh
• Voltage Range: 45.0V – 56.4V
• Recommended Charge/Discharge Current: 50A (0.5C)
• Max Charge/Discharge Current: 100A (1C)
• Dimensions (W × H × D): 442 × 133 × 440 mm
• Weight: ~40 kg
• Cycle Life: ≥6,000 cycles @ 80% DOD
• Operating Temperature: Charge: -5°C to +45°C / Discharge: -20°C to +50°C
• Communication: CAN, RS485
• Enclosure Protection: IP20

Applications:

• Residential solar energy storage
• Commercial backup power
• Off-grid systems
• Telecom base stations
• Industrial energy storage

Package Includes:

• SDC10-Box5 / ABM10-Box5 Battery Module
• Power cables
• Communication cable
• User manual

Warranty:

5 Years
