GROWATT 10KW 120V/240V SPLIT PHASE HYBRID INVERTER

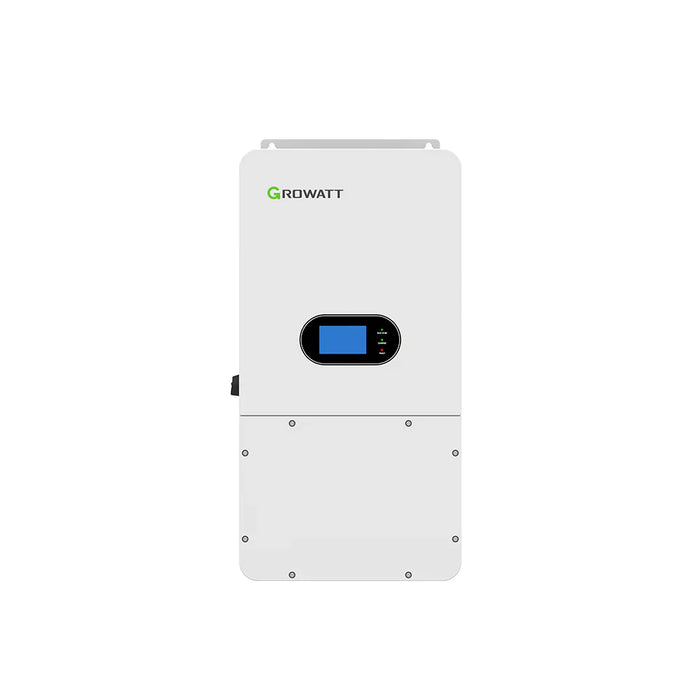

Growatt SPH 8000–10000TL-HU-US(B) Hybrid Inverter

Rechargeable Power Energy proudly offers the Growatt SPH Hybrid Inverter Series, a powerful and flexible solar solution ideal for both on-grid and off-grid energy systems. Designed with performance, safety, and expandability in mind, this inverter is perfect for residential and small commercial energy storage applications.

Key Features

💡 Core Capabilities

  • UPS function with <10ms switch time for seamless backup

  • Supports up to 200A charge/discharge current

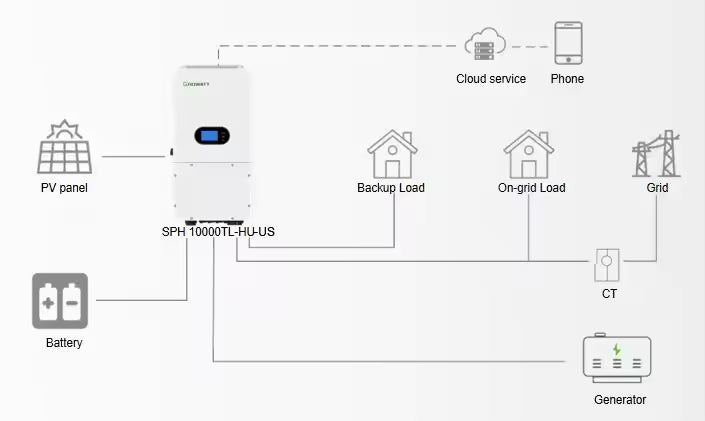

  • Works with both DC-coupled and AC-coupled systems

  • Diesel and gas generator compatibility

  • Up to 6 units in parallel, supports split-phase and three-phase 220V/208V setups

⚡ System Efficiency

  • Up to 1.5 DC/AC ratio with 3 MPP trackers

  • Max efficiency of 98.1%, MPPT efficiency ≥99.9%

  • CEC weighted efficiency: 97%

🔒 Safety & Protection

  • AFCI (arc fault circuit interrupter) built-in

  • Type II surge protection on both DC and AC sides

  • Ground fault, over-voltage, and residual-current monitoring

  • Anti-islanding and insulation resistance protection

🧩 Smart Features

  • Supports lithium-ion and lead-acid batteries

  • Compatible with WIFI, RS485, CAN, USB

  • Smart cooling design with low noise (<60 dB)

  • LCD display interface with optional 4G/WiFi monitoring

  • UL1741SB, UL9540, IEEE 1547, Rule 21 & Rule 14 (HECO), FCC, CSA certified

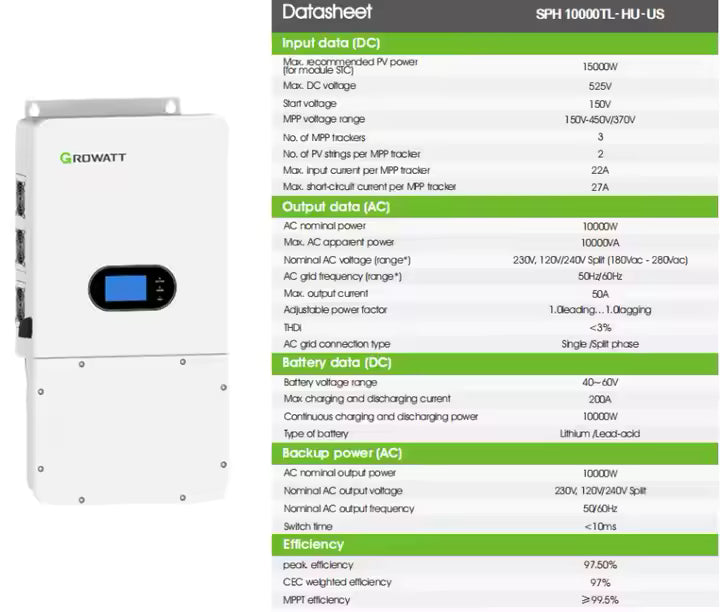

📐 Specifications Summary

Spec Value
Rated Output Power 8000–10000W
Battery Voltage Range 40–60V
Max Charge/Discharge Current 200A
Max PV Input Power 15,000W
MPPT Inputs 3 Trackers
PV Voltage Range 150–450V
Dimensions (W×H×D) 457 × 874 × 256 mm
Weight 42.5 kg (93.7 lbs)
Protection Rating IP65 / NEMA 4
Operating Temp –25°C to +60°C
Certifications UL 1741SB, UL 9540, CSA C22.2, IEEE 1547, HECO SRD, CE (EMC, LVD), FCC Part 15

📁 Downloadable Resources

You can add these as clickable document links on the product page:

  1. 📘 User ManualSPH 8-10kTL-HU-US User Manual

  2. ⚙️ DatasheetSPH 8000–10000TL-HU-US Technical Datasheet

  3. 🛠️ Quick Install GuideSPH 10000TL-HU-US Quick Installation

  4. 📄 Quick Setup Guide (B Model)SPH 8-10kTL-HU-US(B) Quick Guide

  5. 🧾 Meter & CT Quick GuideTPM-CT-E-US + SPH-HU-US

  6. 📜 Certification (UL9540)SPH ALP ESS US UL9540 Approval

  7. 📜 Certification (UL1741SB / IEEE1547)SPH UL & IEEE Compliance

  8. 📜 FCC ComplianceSPH 8000–10000TL-HU-US(B) FCC Part 15C

  9. 🇪🇺 CE Certification (LVD)SPH 10000TL-HU-US CE LVD

  10. 🇪🇺 CE Certification (EMC)SPH 10000TL-HU-US CE EMC

  11. 🔋 Approved Battery List – Compatible LV Battery Brands (Growatt)
