Model U2400-US | LiFePO₄ Battery | 2300 Wh Capacity

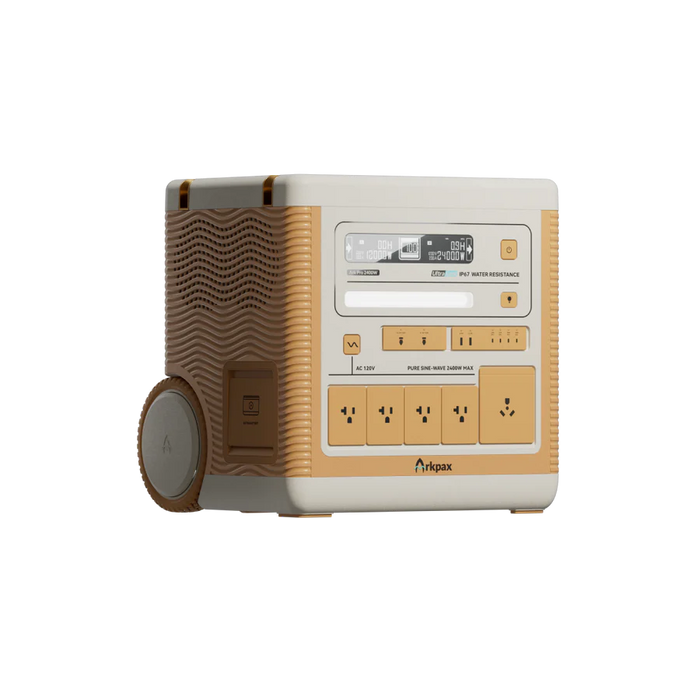

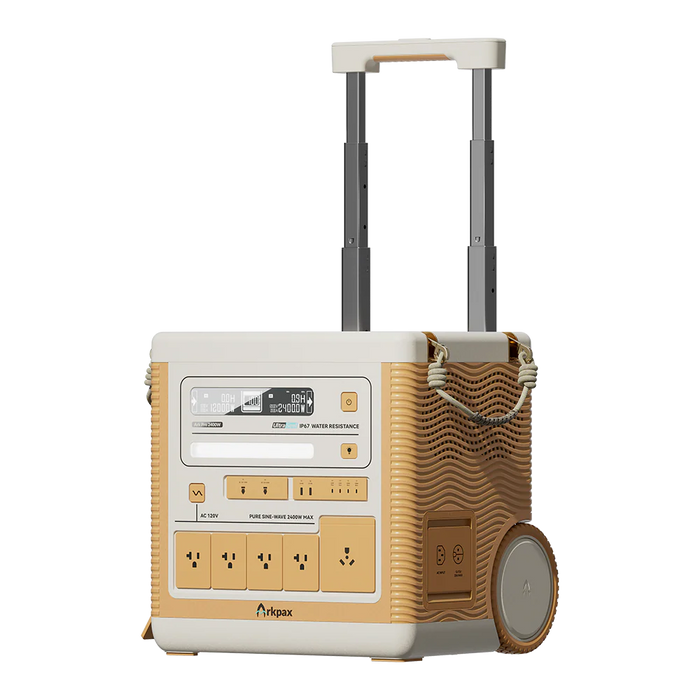

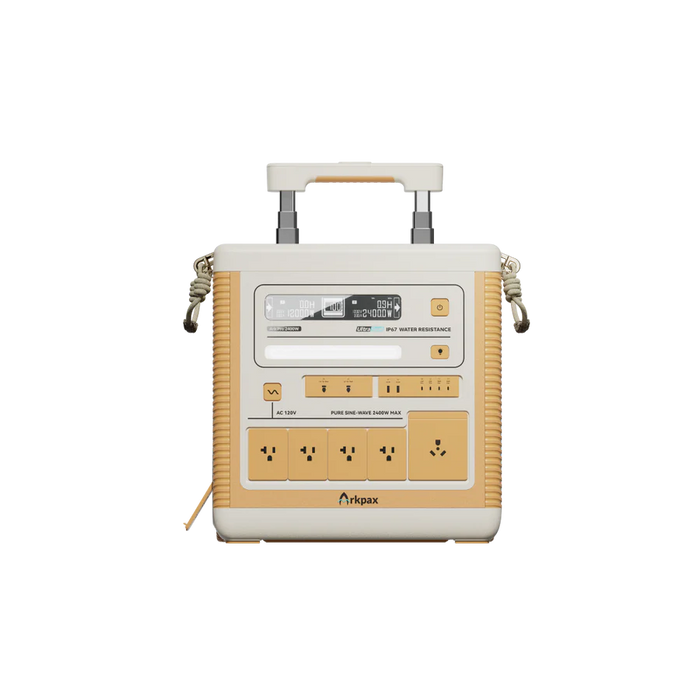

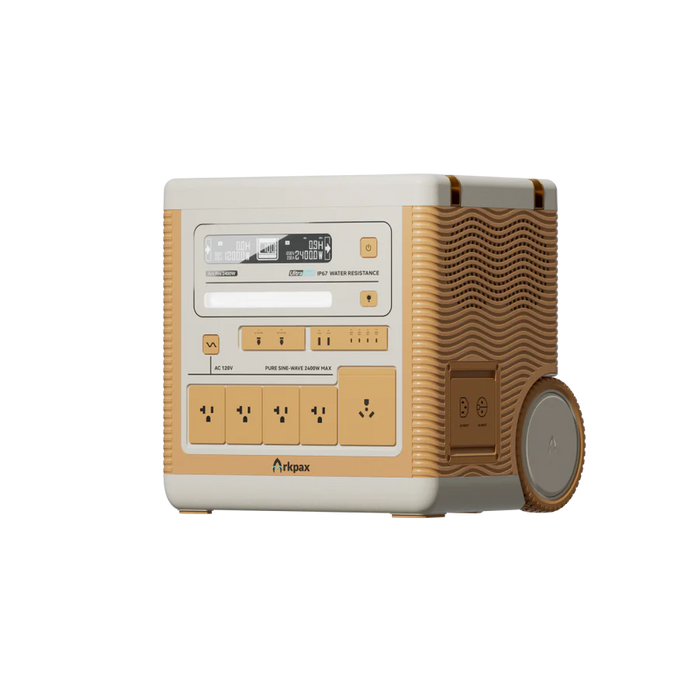

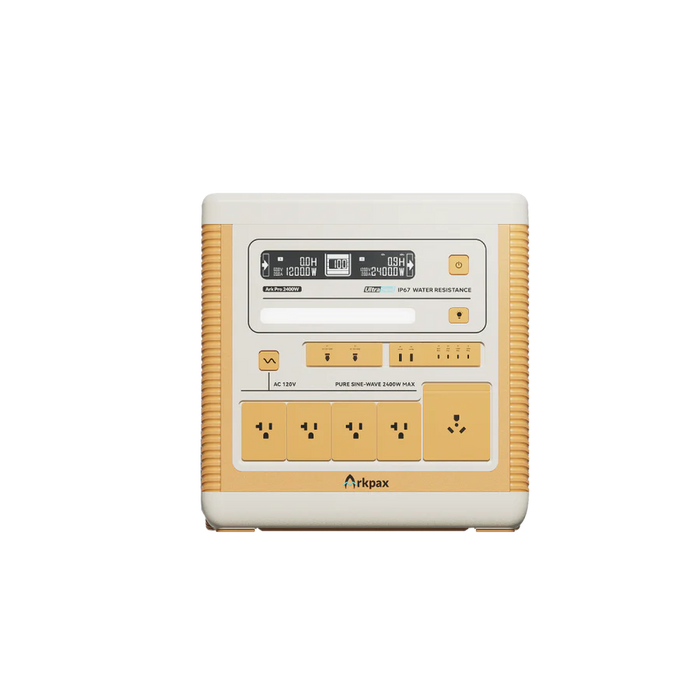

The Arkpax Ark Pro 2400 W is a professional-grade waterproof power station built for demanding applications.
Delivering 2400 W continuous output and 4800 W surge power, it’s designed for contractors, overlanders, and emergency teams who need industrial-level reliability in a portable IP67-rated design.
Its LiFePO₄ battery provides exceptional safety and over 3000 charge cycles for long-term durability.

Key Features

• 2400 W AC Output (4800 W Surge) — runs power tools, large appliances, and backup systems.

• 2300 Wh LiFePO₄ battery — high-capacity pack rated 3000 + cycles to 80 % capacity.

• IP67 waterproof, dustproof, and shock-resistant construction.

• 13 total output ports including AC, DC, USB-A, USB-C PD 100 W, and car ports.

• Supports expansion with up to 10 extra batteries for 25 kWh max storage.

• Fast charging via AC (3 hrs 1500 W), solar (4 hrs 1200 W with MPPT), or car input.

• Built-in UPS mode (20 ms switch) for home or worksite continuity.

• Intelligent BMS protection monitors temperature, voltage, and current.

Technical Specifications

Model Name: Ark Pro 2400 W (U2400-US)
Battery Chemistry: LiFePO₄ (LFP)
Capacity: 2300 Wh
Cycle Life: 3000 cycles to ≥ 80 % capacity
AC Output: 6 outlets (2400 W total, 4800 W surge)
DC Output: 4 ports (5 V / 9 V / 12 V / 15 V / 20 V 5 A, 100 W max)
USB-A Output: 2 ports 22.5 W max
USB-C Output: 2 ports 120 W max (PD 100 W)
Car Output: 2 ports 12 V 10 A max
Expansion Capacity: Supports up to 10 extra battery packs (25 kWh max)
AC Input Voltage: 110–130 V (50 / 60 Hz)
Solar Charging: 12–60 V 400 W max (MPPT supported)
Car Charging: 12 V / 24 V 10 A supported
Recharge Time: 3 hrs (AC 1500 W) / 4 hrs (400 W solar) / 7 hrs (car socket)
UPS Switch Time: 20 ms
Operating Temperature: −10 °C to +45 °C (14 °F to 113 °F)
Storage Temperature: −20 °C to +45 °C (−4 °F to 113 °F)
Dimensions: 16.5 × 13.5 × 15.9 in (42 × 34 × 40 cm)
Net Weight: ≈ 48 lb (21.8 kg)
Warranty: 2 Years Manufacturer Warranty

In the Box

• 1 × Ark Pro 2400 W Power Station

• 1 × AC Charging Cable

• 1 × Car Charging Cable

• 1 × User Manual

Ideal For

Construction Sites | Home Backup Systems | Overlanding | Emergency Response | Outdoor Events

Downloads

Manual
