Soluna Parallel Box | For Soluna 10K/15K Use Only
Soluna Parallel Box | For Soluna 10K/15K Use Only
Description

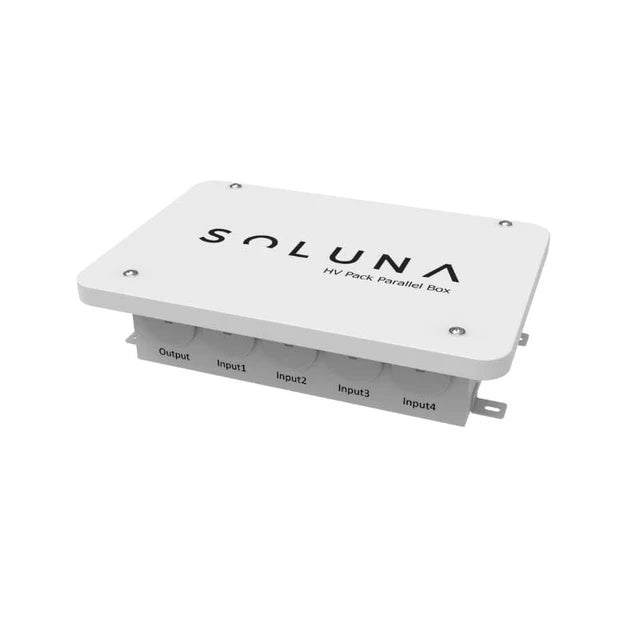

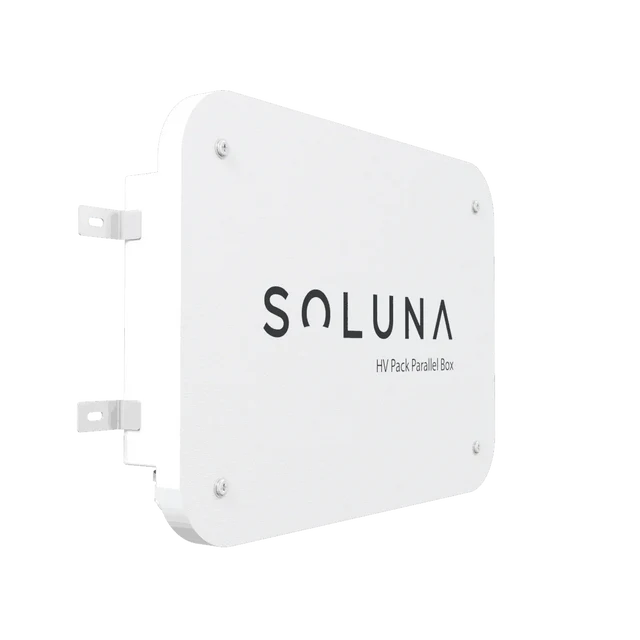

The Soluna Parallel Box is specifically designed for use with Soluna 10K/15K, utilizing a professional and scientific approach to its operation. This combiner box is capable of integrating multiple batteries in parallel, providing a formal and informative solution for your needs.

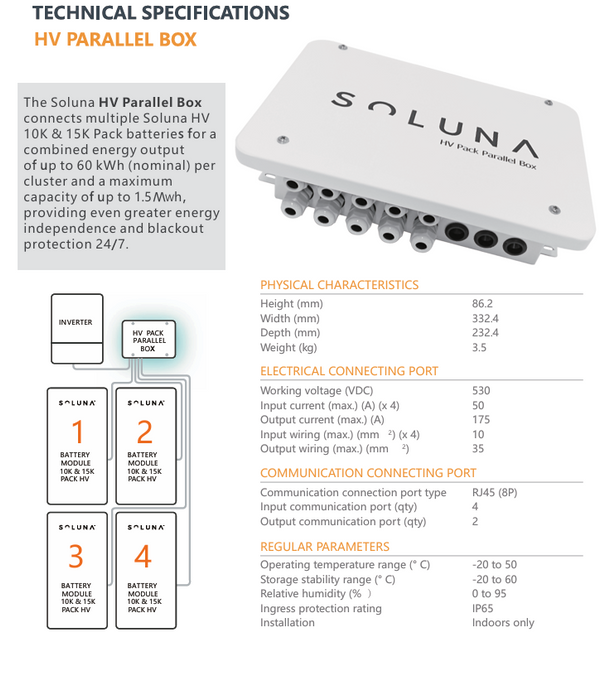

Product Specifications:
| Specifications | |
|---|---|
| Dimensions (HxWxD) | 86.2 x 332.4 x 232.4 mm |
| Weight | 3.5kg |
| Working voltage | 530 VDC |
| Input current (max.) (A) (x 4) | 50 |
| Output current (max.) (A) | 175 |
| Input wiring (max.) (mm2) (x 4) | 10 |
| Output wiring (max.) (mm2) | 35 |
| Communication connection port type | RJ45 (8P) |
| Input communication port (qty) | 4 |
| Output communication port (qty) | 2 |
| Operating temperature range (° C) | -20 to 50 |
| Storage stability range (° C) | -20 to 60 |
| Relative humidity (° C) | 5 to 95 |
| Ingress protection rating | IP54 |
| Installation | Indoors only |
| Warranty | 3 Year Warranty |
