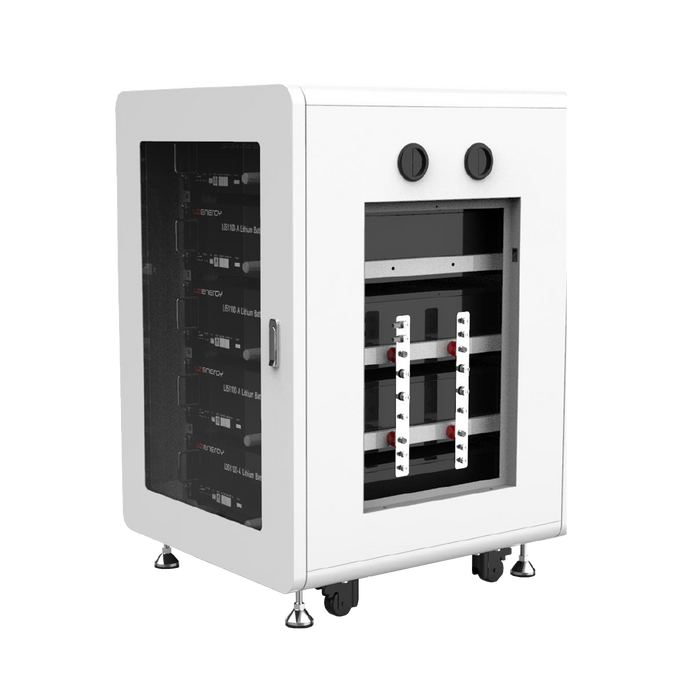

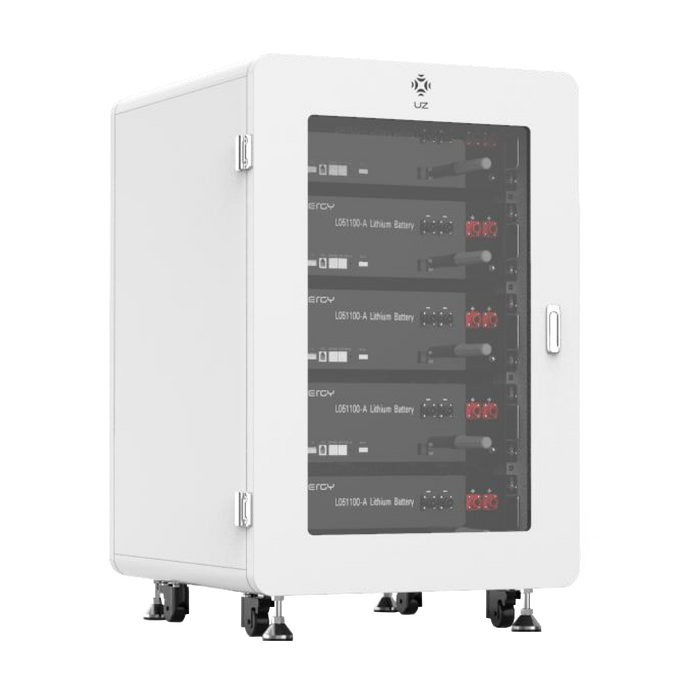

Power Lite Cabinet 5 Layer system will allow HS-L051100-B units to make a 25.6 kWh Capacity system
Description:
The Power Lite Cabinet 5 Layer System is a high-performance, modular energy storage solution designed for residential and light commercial applications. Fully loaded with five HS-L051100-B lithium iron phosphate (LFP) battery modules, this system delivers a total capacity of 25.6 kWh, ideal for solar storage, backup power, or off-grid use.
Key Features:
-
Total Capacity: 25.6 kWh (5 × 5.12 kWh modules)
-
Battery Type: Lithium Iron Phosphate (LFP)
-
Integrated BMS: Built-in Battery Management System for safety and performance
-
Communication Ports: CAN & RS-485 – compatible with leading hybrid inverters
-
Cabinet Design: 5-layer steel rack enclosure – clean, compact, and scalable
-
Installation: Plug-and-play modules for easy setup and maintenance
-
Expandable: Stackable design for larger energy storage requirements
-
Durability: Over 6,000 cycles lifespan with a 10-year design life
Applications:
-
Home energy storage (solar battery backup)
-
Emergency power / UPS systems
-
Off-grid and hybrid energy systems
-
Small commercial or industrial backup
Technical Specifications:
| Parameter | Value |
|---|---|
| Total System Capacity | 25.6 kWh |
| Module Capacity | 5.12 kWh (per module) |
| Voltage | 51.2 V nominal |
| Max Discharge (Per Unit) | 100 A (continuous) |
| Battery Chemistry | LiFePO₄ (LFP) |
| Cycle Life | ≥ 6,000 cycles |
| Warranty | Up to 10 years |
| Communication | CAN, RS-485 |
| Cabinet Size | Standard 19” rack format |
| Installation | Indoor wall or floor mount |
Why Choose Power Lite?
-
Safe and reliable LFP battery technology
-
Easy modular setup with plug-in design
-
Space-saving cabinet design
-
High power output for critical loads
-
Future-proof with expandable architecture
What’s Included:
-
1 × Power Lite 5-Layer Steel Cabinet
-
5 × HS-L051100-B Battery Modules
-
All internal wiring, busbars, and integrated BMS
